CAD Drafting Table

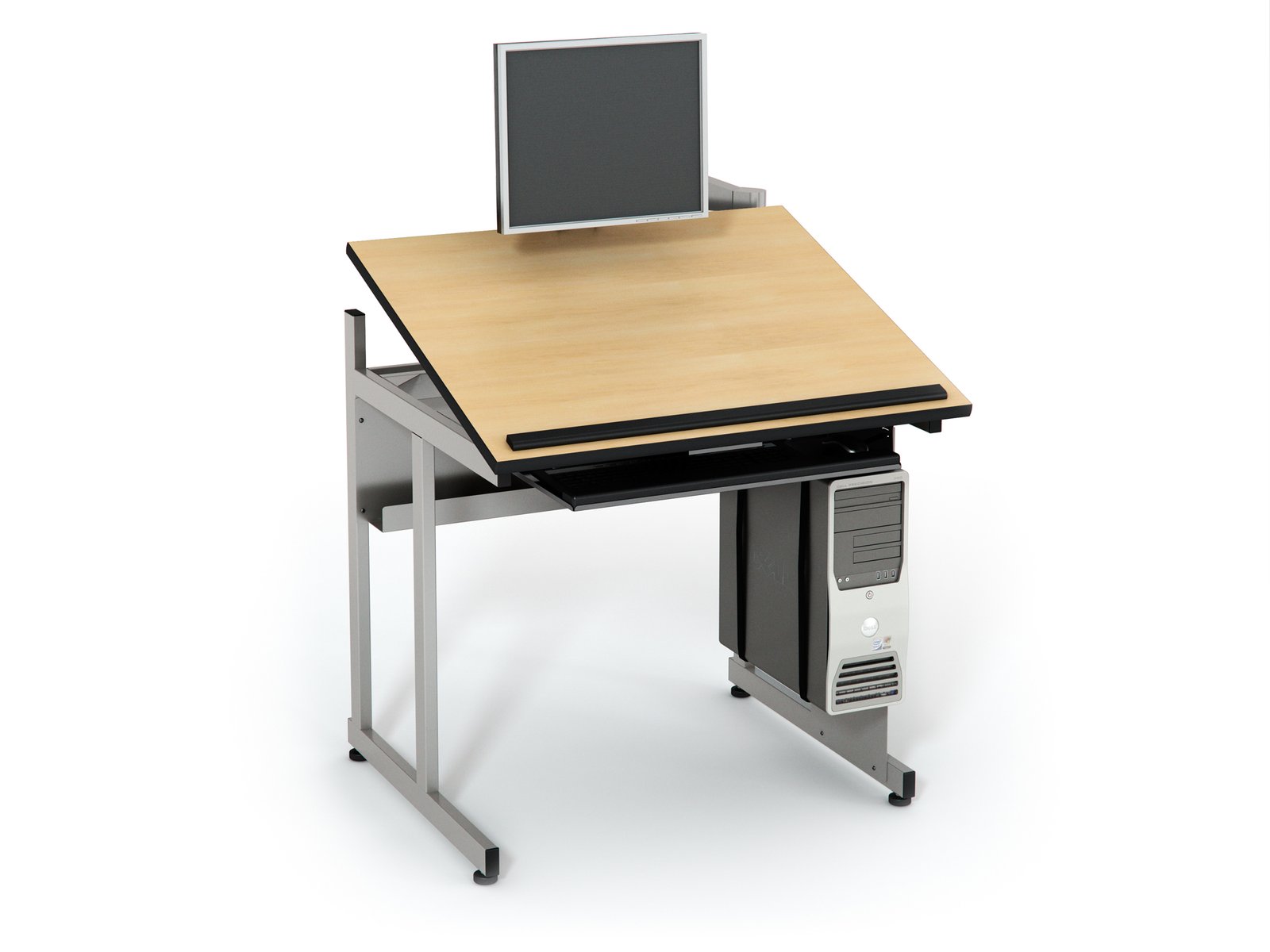

  • Tilting CAD drafting table with pencil stop, monitor arm, and vertical CPU holder.

    Tilt-top adjusts 0–27°; pencil stop, monitor arm, and CPU holder create a computer-ready setup.

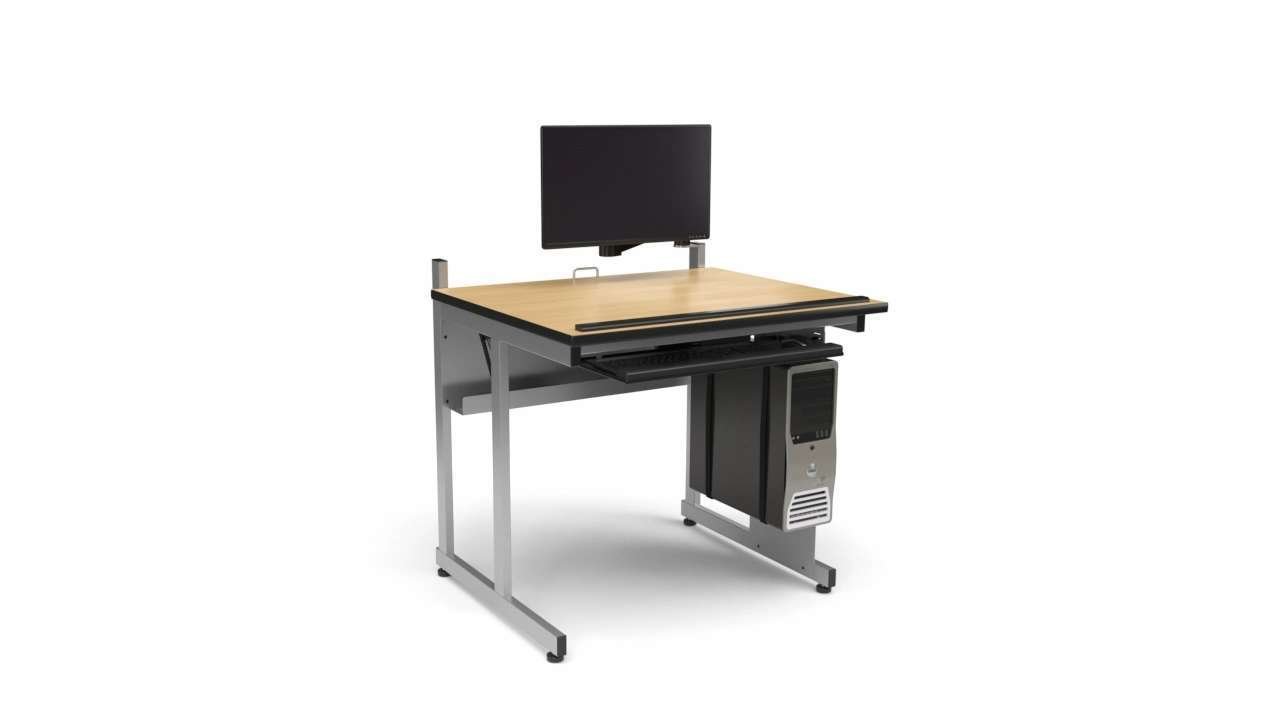

  • Animation of CAD drafting table showing 0–27° tilt-top adjustment (15 positions). – video preview

    The worksurface tilts through 15 positions up to 27° for close drafting, then returns to flat for classroom or computer use.

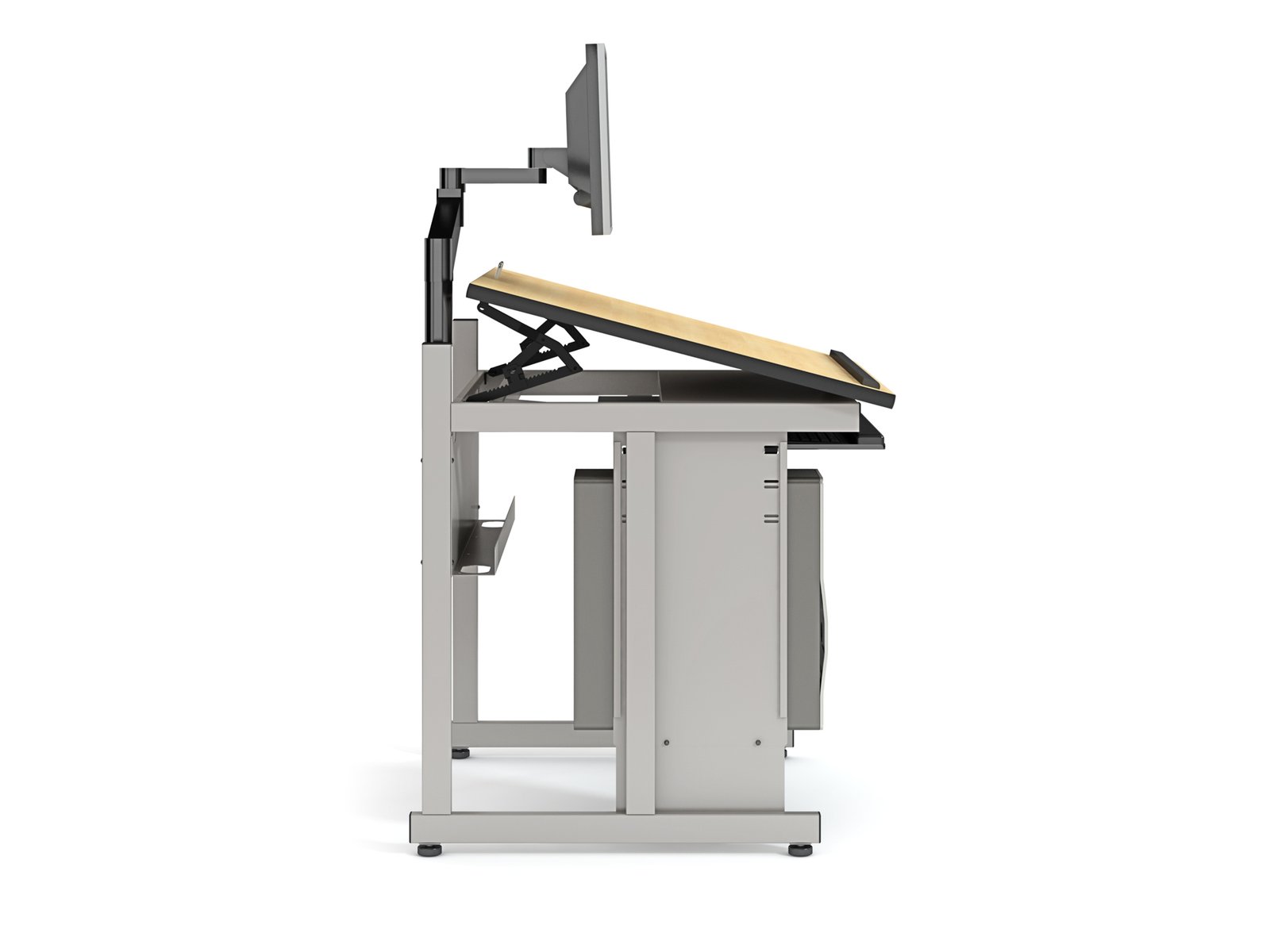

  • Side view of tilting CAD drafting table showing multi-position tilt mechanism, monitor arm, pencil stop, and vertical CPU holder.

    Side profile with tilt mechanism; monitor arm and CPU holder shown for a computer-ready setup.

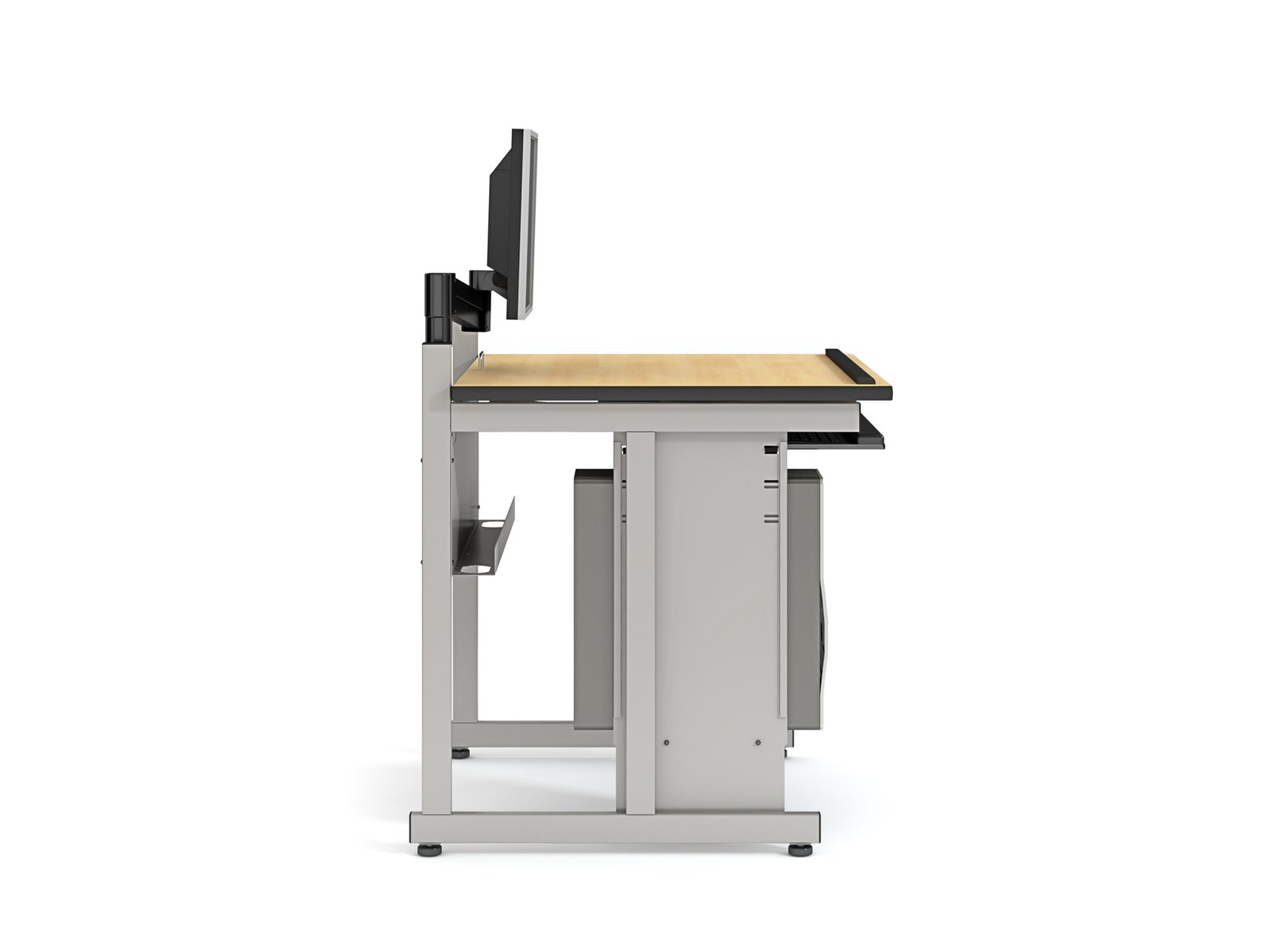

  • Side view of CAD drafting table in flat position with pencil stop, monitor arm, and vertical CPU holder.

    Side profile with top positioned flat for classroom/computer use; monitor arm and CPU holder shown.

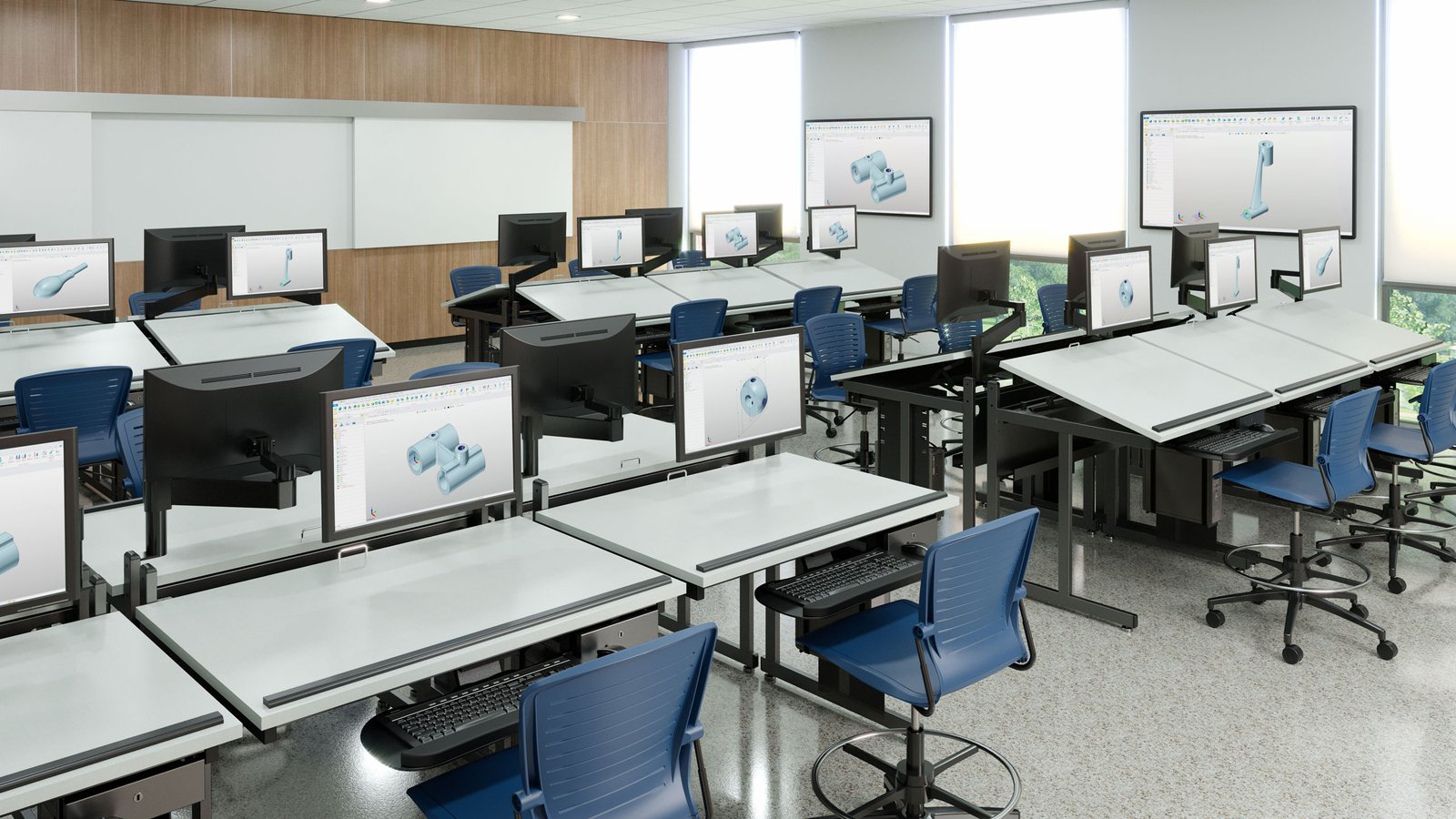

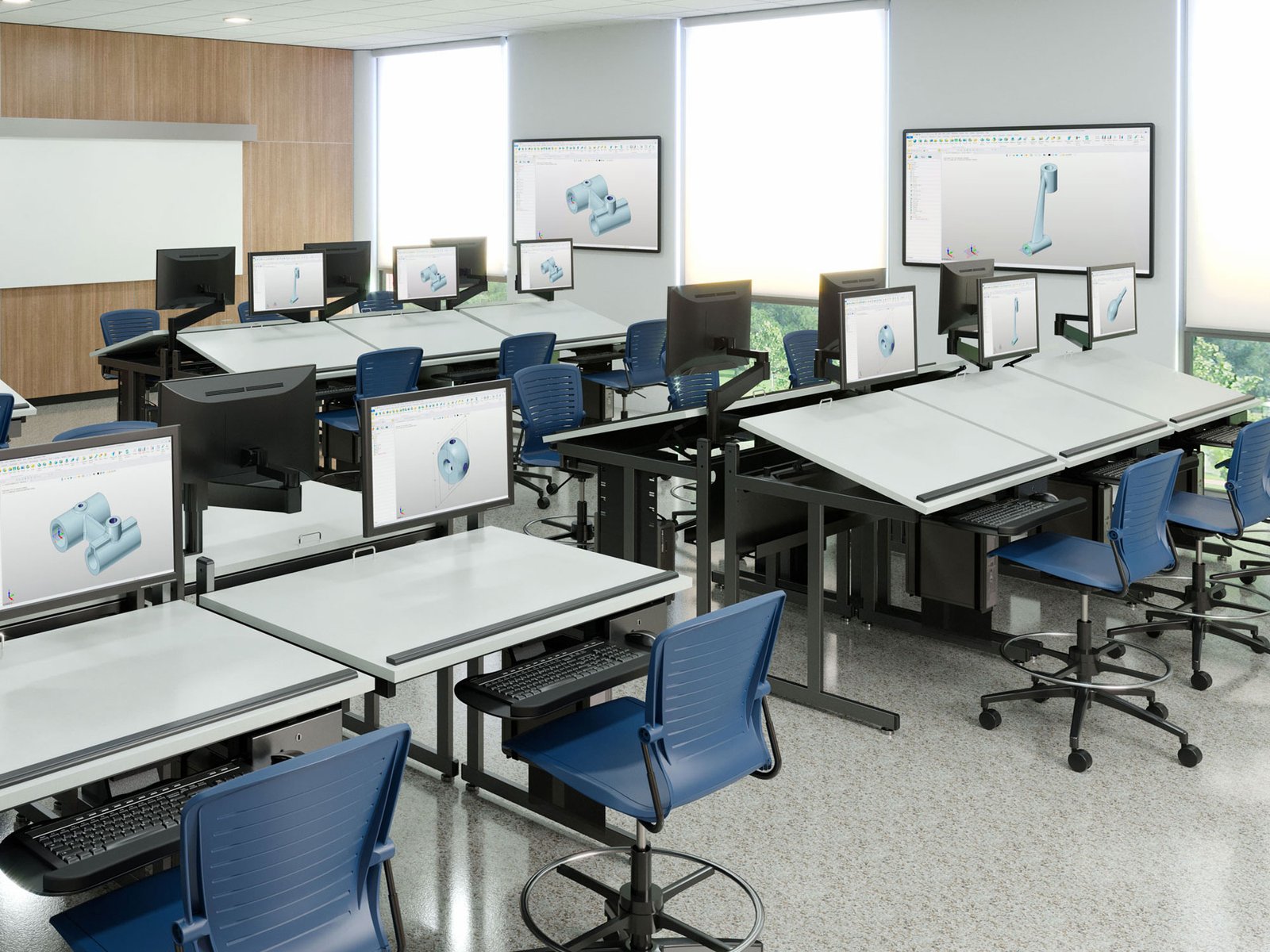

  • CAD classroom with tilting drafting tables arranged in traditional rows, monitor-arm displays, and height-adjustable stools.

    Traditional row layout with tops tilted for close drafting; monitor-arm screens and stools support a computer-ready classroom.

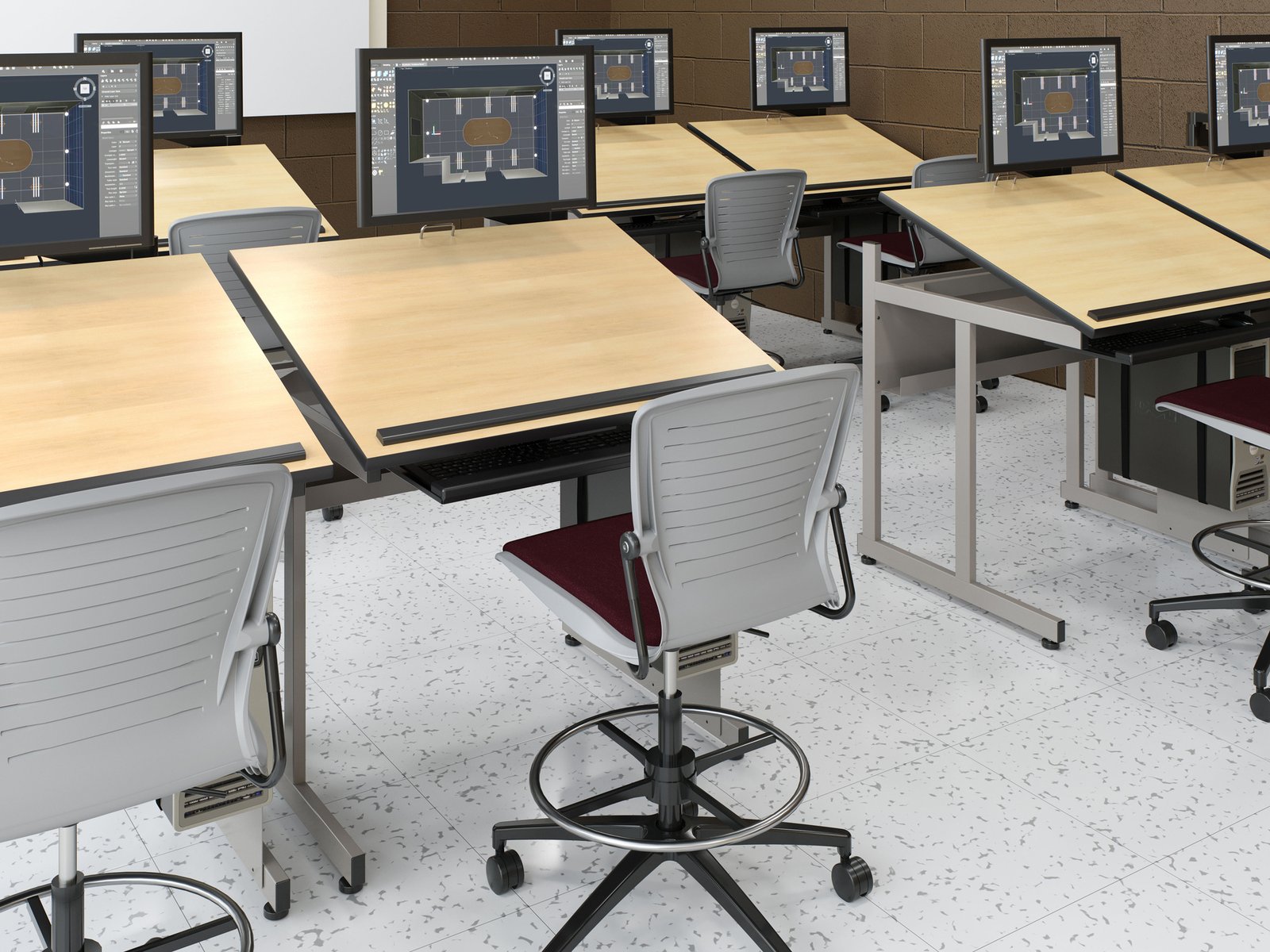

  • Close view of paired drafting stations in back-to-back rows—foreground tops flat, right-side tops tilted—monitors on arms.

    Detail of the dual-row setup showing flat CAD stations beside tilted drafting stations for quick mode changes.

  • Tilting CAD drafting table with pencil stop, monitor arm, and vertical CPU holder.
  • Animation of CAD drafting table showing 0–27° tilt-top adjustment (15 positions). – video preview
  • Side view of tilting CAD drafting table showing multi-position tilt mechanism, monitor arm, pencil stop, and vertical CPU holder.
  • Side view of CAD drafting table in flat position with pencil stop, monitor arm, and vertical CPU holder.
  • CAD classroom with tilting drafting tables arranged in traditional rows, monitor-arm displays, and height-adjustable stools.
  • Close view of paired drafting stations in back-to-back rows—foreground tops flat, right-side tops tilted—monitors on arms.

CAD Drafting Table

Product Description

The multi-purpose CAD drafting table blends manual drafting and CAD in one ergonomic workstation. The tilt-top adjusts 0–27° (15 positions) to bring drawings closer to your eyes and hands for detailed work, and it can also be positioned flat for traditional classroom or computer use. An integrated cable-tray modesty panel keeps wires tidy, while optional accessories—keyboard drawer, tool drawer, CPU holder, and monitor arm—create a computer-ready drafting table for education labs and architecture studios.

Features

Tilt & Ergonomics

A tilting CAD drafting table that supports close, detailed work without clutter.

  • 0–27° tilt range (15 positions) brings drawings closer to eyes and hands.
  • Positions flat for traditional classroom or computer use.
  • Front pencil ledge/stop helps secure sheets and tools.

Computer-Ready Integration

Build a computer-ready drafting table for labs and studios with optional
accessories.

  • Monitor-arm ready rear uprights for CAD displays.
  • Optional keyboard/mouse drawer for comfortable typing when the top is flat.
  • Optional vertical CPU holder to keep towers off the floor and within reach.

Cable Management & Access

Clean drafting table cable management for electronic classrooms.

  • Integrated cable-tray modesty panel routes and hides cords.
  • Tie-down points and pass-throughs support neat wire runs.

Materials & Construction

Durable components built for daily use in education environments.

  • 1″ HPL worksurface with 3mm PVC edge; flat edge profile for accessories.
  • Welded steel C-leg frame with textured powder-coat finish.
  • Adjustable glides/levelers stabilize the table on uneven floors.

Sizes & Footprint

Configurations sized for classrooms, architecture studios, and makerspaces.

  • Standard width options: 36″, 42″ and 48″ to fit rows or pods.
  • Standard depth: 28″ Worksurface (30″ overall)
  • Standard height options: 32″ and 36″ available to match lab standards.
CAD classroom with back-to-back rows of drafting tables, some tilted and some flat, with monitor-arm displays.

Computer Comforts designs and manufactures innovative furniture solutions for education environments.

Is the CAD Drafting Table a perfect fit for your learning space?
