4-Trac Modular Power Distribution System

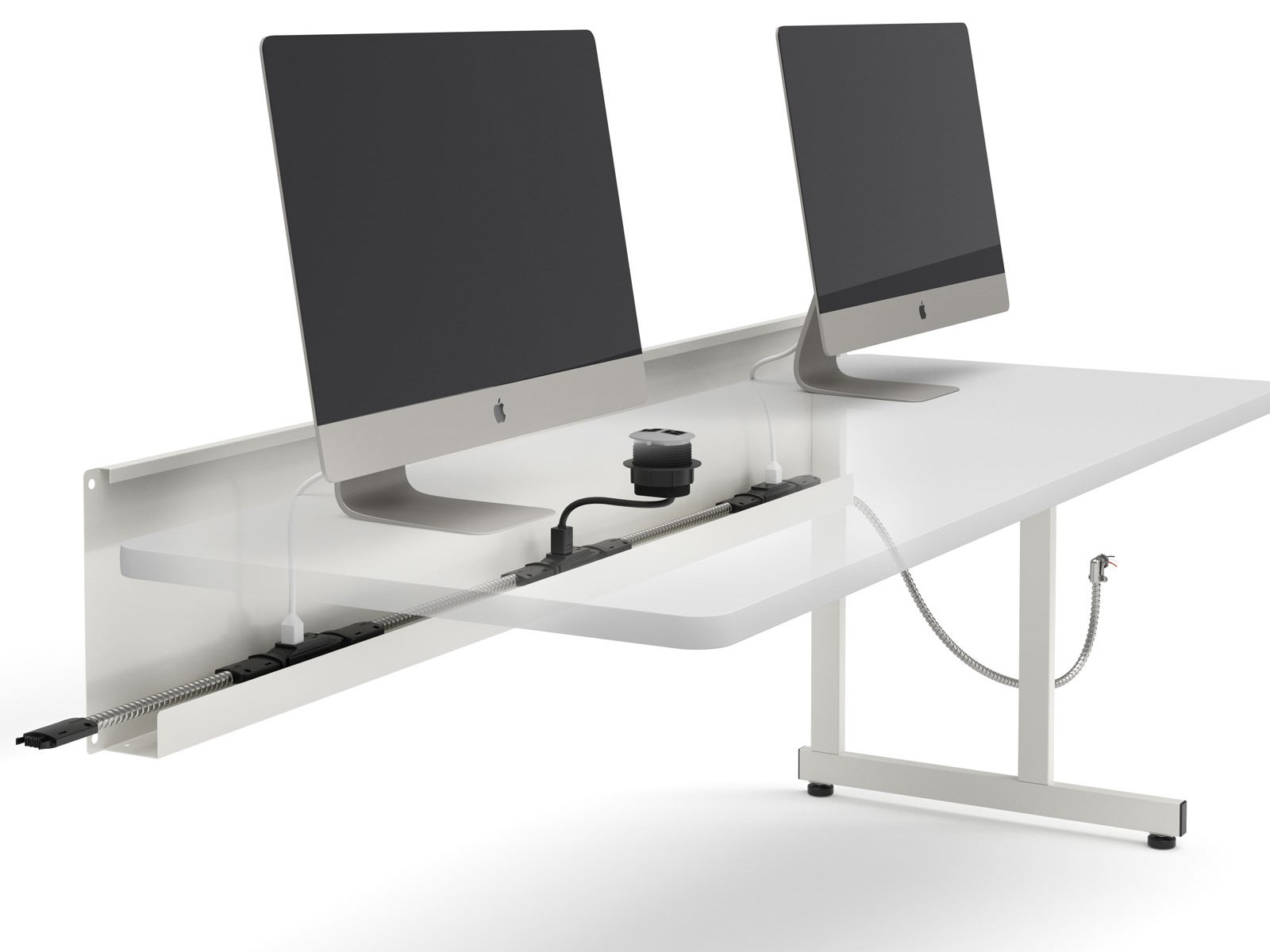

  • 4-Trac power distribution in cable tray of dual-user table with three duplex receptacles

    4-Trac system installed in the cable tray of a dual-user classroom table, showing three duplex receptacles powering iMacs and a tabletop power node—illustrating clean under-table routing and the ability to daisy-chain between tables.

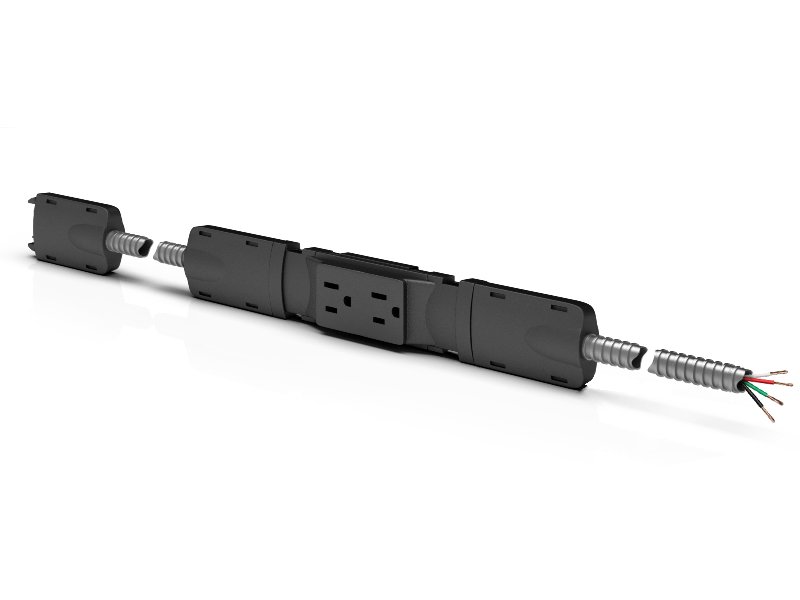

  • 4-Trac duplex receptacle with jumper cable and hardwired infeed showing split conduit lengths

    Duplex receptacle connected to a jumper on one side and a hardwired infeed on the other; split conduit illustrates available length configurations for flexible power runs.

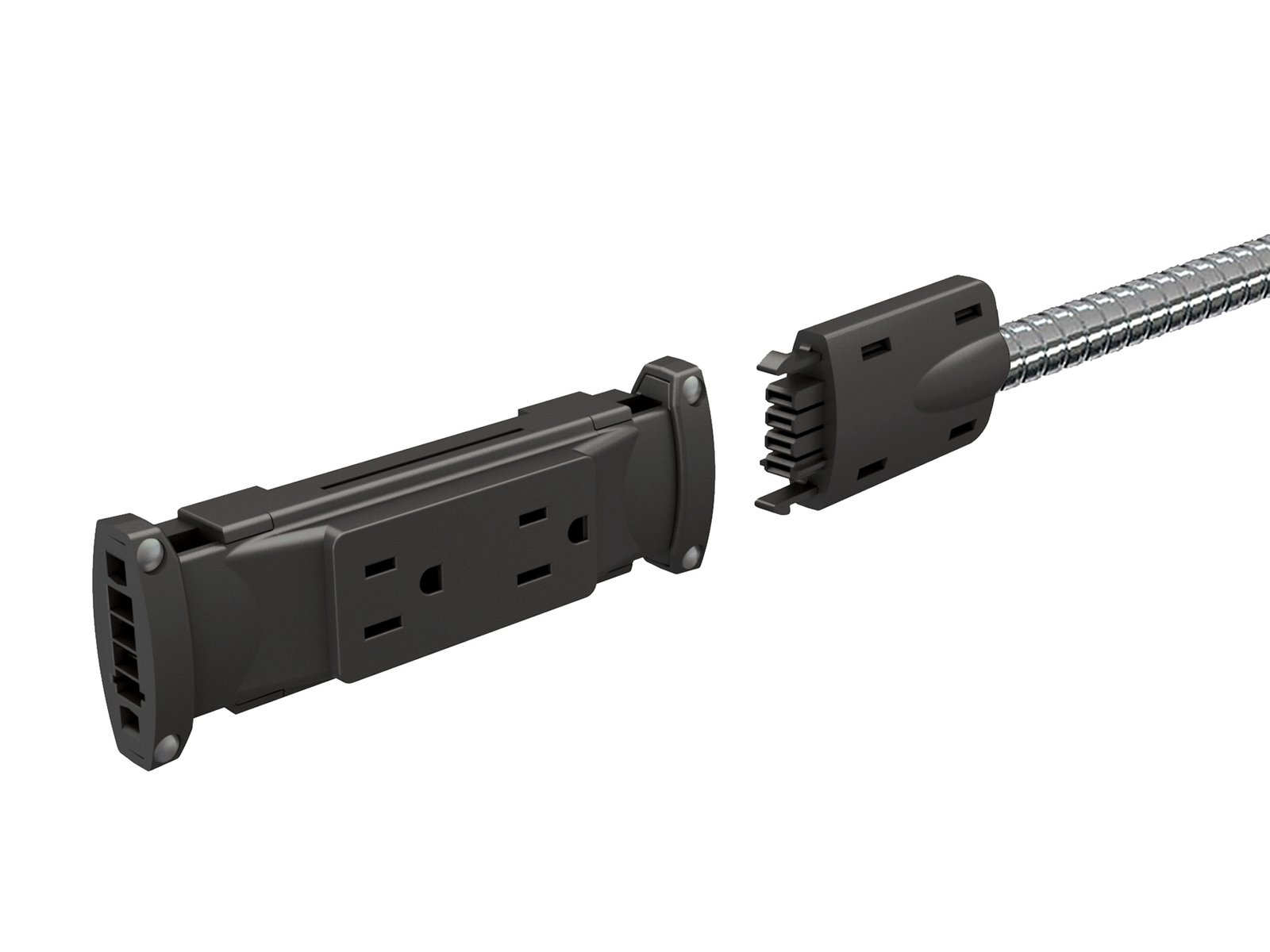

  • 4-Trac duplex receptacle module disconnected from jumper cable

    Duplex receptacle and jumper cable shown separated, illustrating the modular connection capability of the 4-Trac power distribution system for flexible layout configuration.

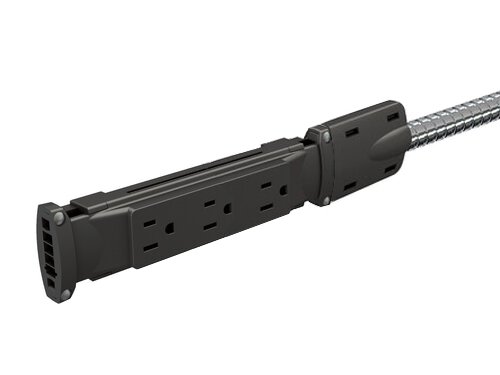

  • 4-Trac triplex receptacle connected to jumper cable

    Triplex receptacle mated to the jumper cable, demonstrating the modular connection and power delivery continuity of the 4-Trac system.

  • 4-Trac power distribution installed in cable tray under classroom desk

    4-Trac system routed inside the cable tray of a classroom table, illustrating low-profile under-table power delivery and clean integration for modular classroom furniture.

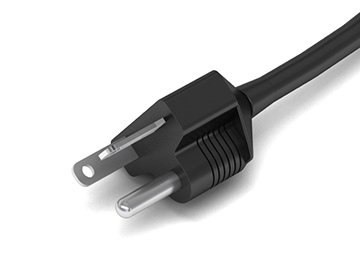

  • 20 Amp grounded power plug for 4-Trac system

    20 Amp corded power plug used as the current tap infeed connection for the 4-Trac modular power distribution system, showing the grounded design for reliable power entry.

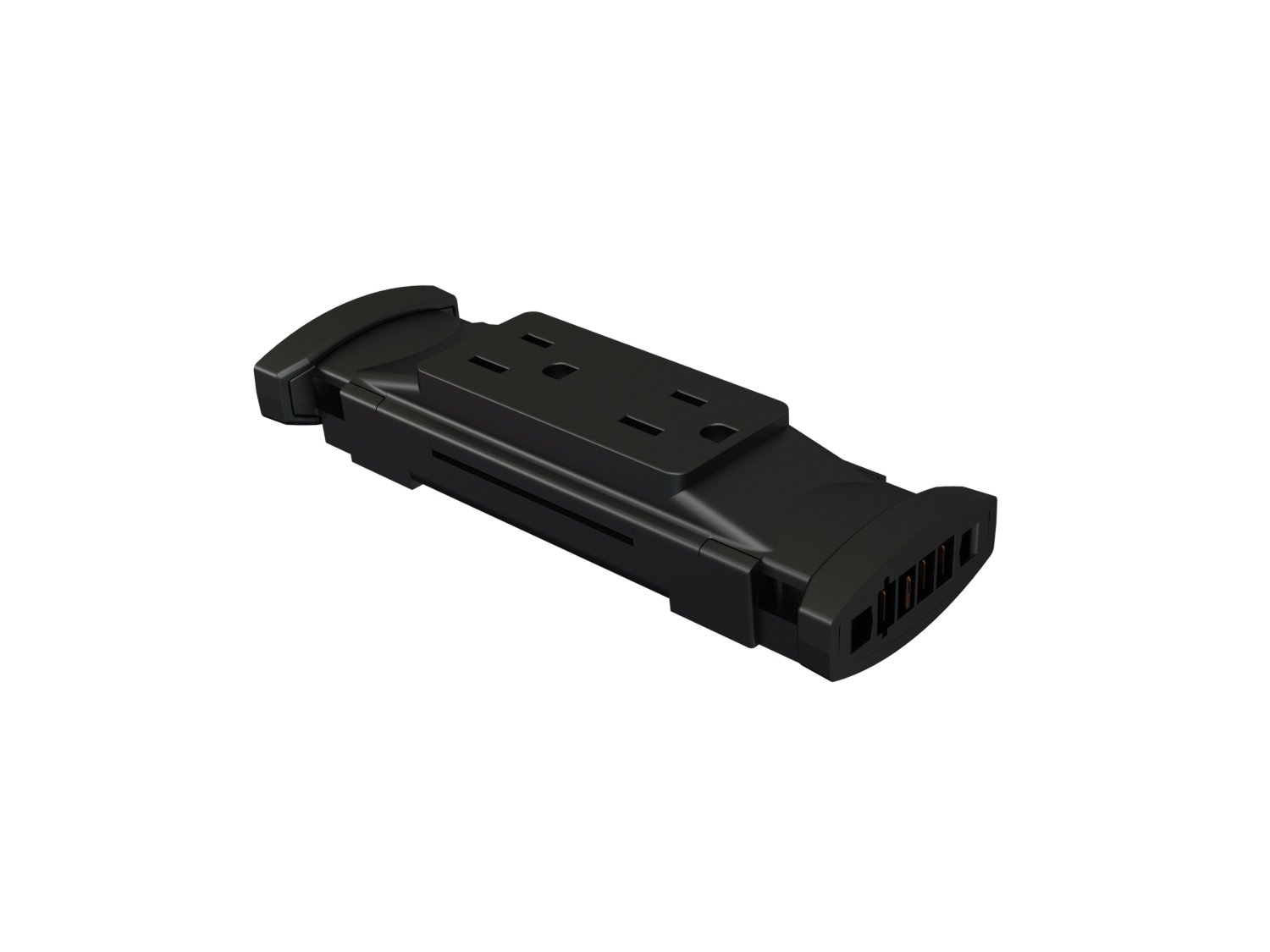

  • 4-Trac 15 Amp duplex receptacle module

    High-density 15 Amp duplex receptacle module for the 4-Trac system, delivering accessible power for collaborative furniture while remaining low-profile.

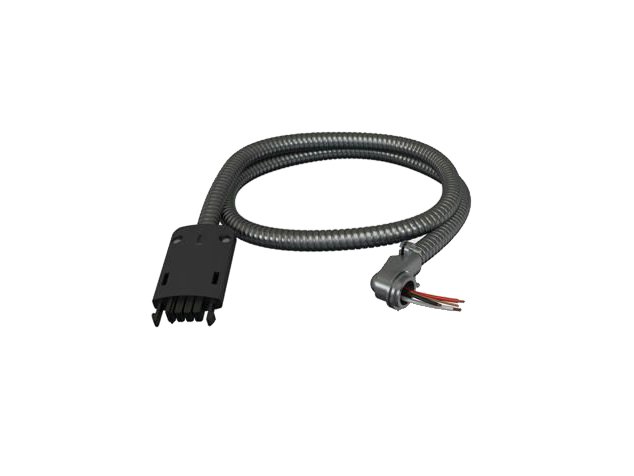

  • 4-Trac modular power infeed cable with keyed connector

    Power infeed cable for the 4-Trac system, featuring the keyed connector that ensures error-resistant under-table power delivery.

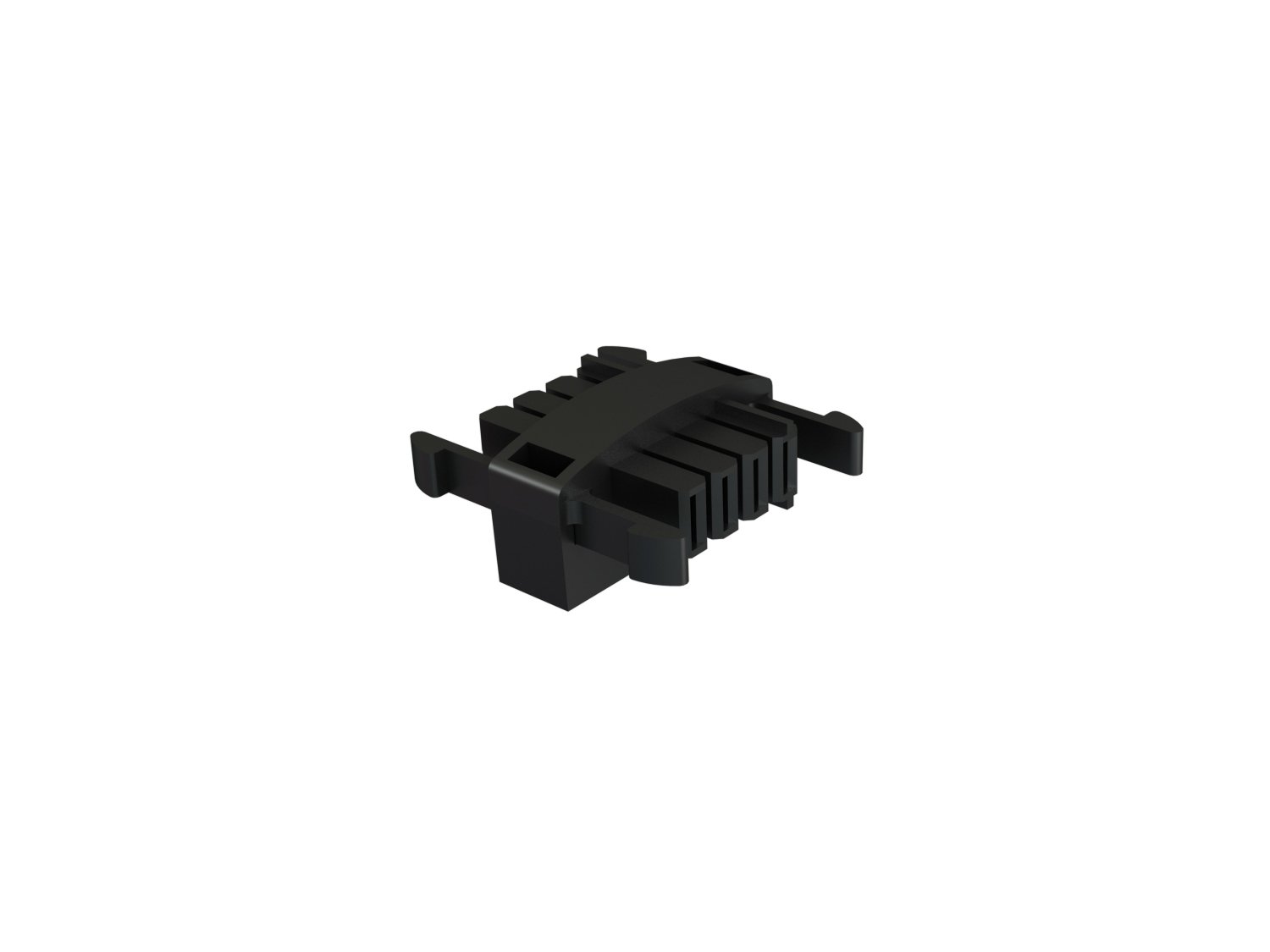

  • 4-Trac receptacle-to-receptacle inline connector

    Inline connector for the 4-Trac receptacles, allowing flexible extension or branching of power runs without custom wiring.

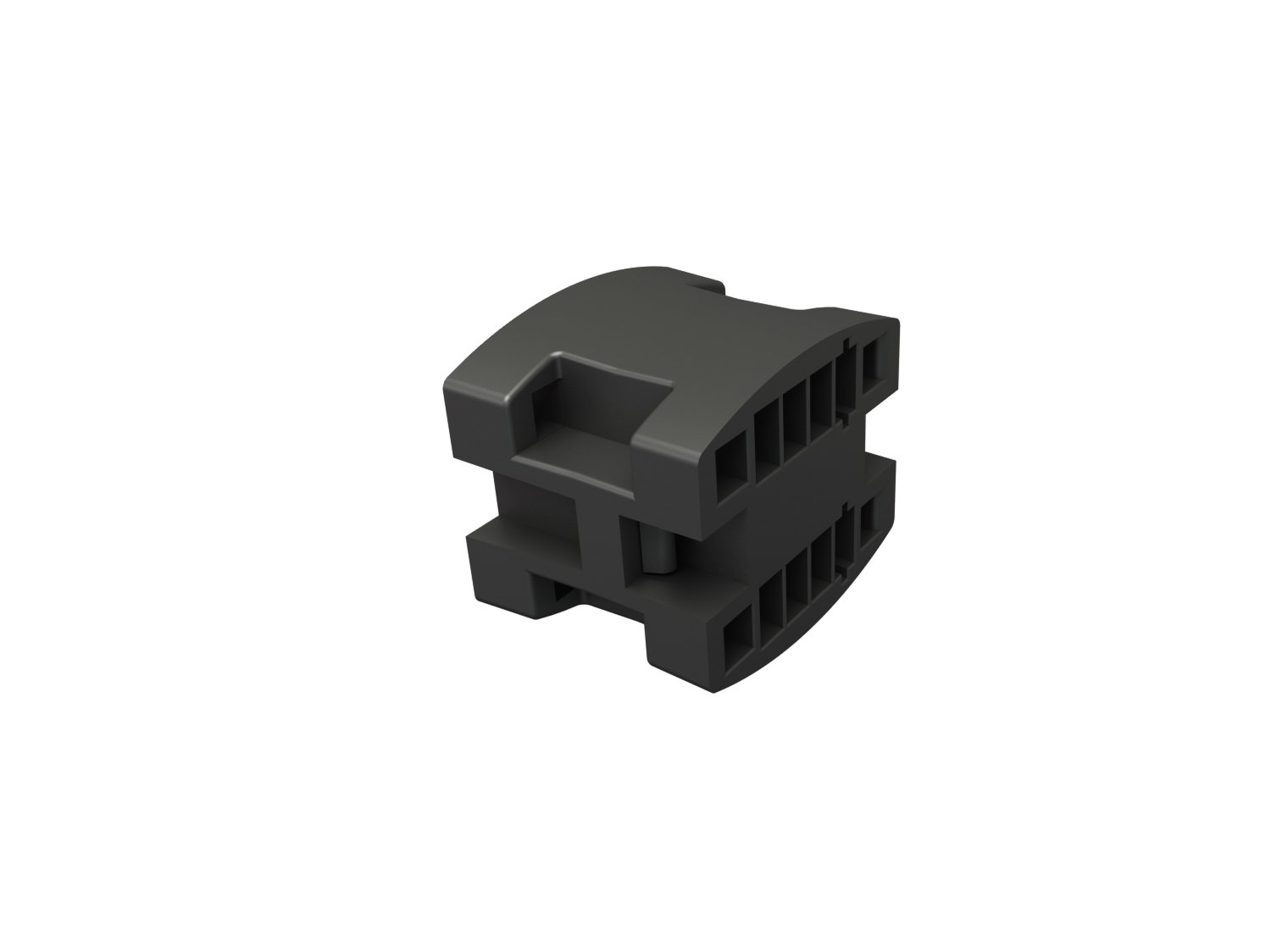

  • 4-Trac H-connector for branching power runs

    H-connector used in the 4-Trac system to branch and reconfigure power distribution paths without disrupting existing infrastructure.

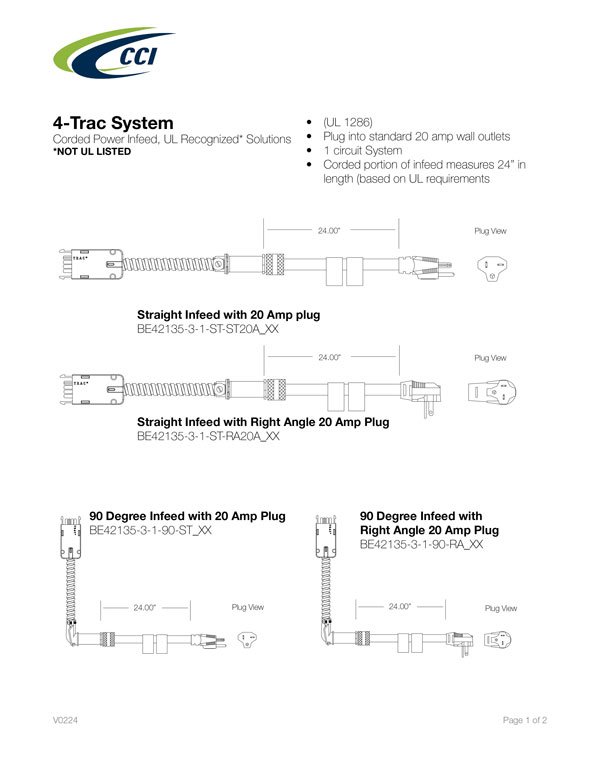

  • Components of the 4-Trac current tap infeed assembly

    Breakdown of the 4-Trac current tap infeed components, illustrating the modular pieces that combine for customizable power configurations.

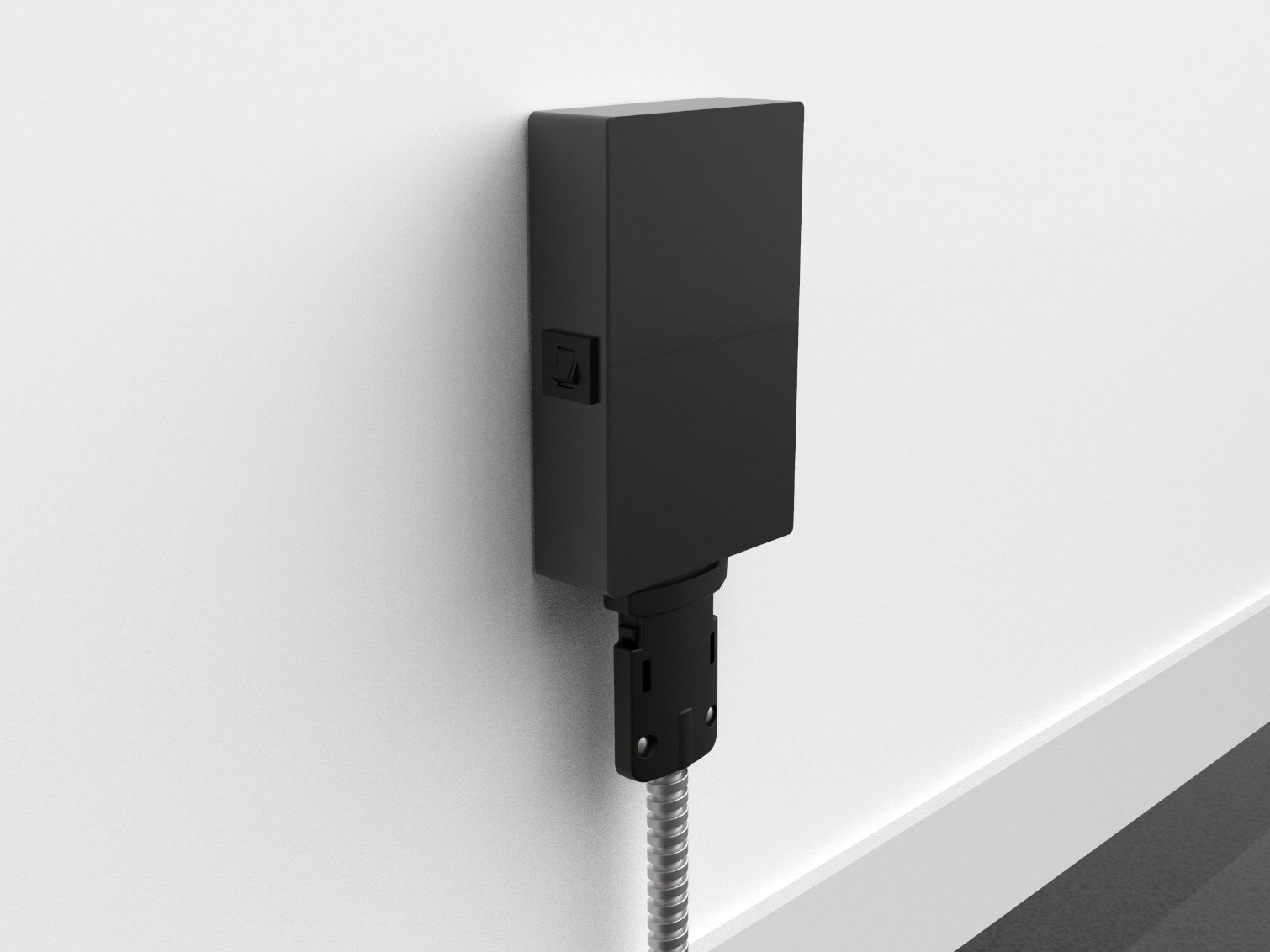

  • 4-Trac 15 Amp current tap infeed plugged into classroom wall outlet

    4-Trac 15 Amp current tap infeed connected directly to a classroom wall outlet, showing the power source entry for the modular distribution system.

  • 4-Trac power distribution in cable tray of dual-user table with three duplex receptacles
  • 4-Trac duplex receptacle with jumper cable and hardwired infeed showing split conduit lengths
  • 4-Trac duplex receptacle module disconnected from jumper cable
  • 4-Trac triplex receptacle connected to jumper cable
  • 4-Trac power distribution installed in cable tray under classroom desk
  • 20 Amp grounded power plug for 4-Trac system
  • 4-Trac 15 Amp duplex receptacle module
  • 4-Trac modular power infeed cable with keyed connector
  • 4-Trac receptacle-to-receptacle inline connector
  • 4-Trac H-connector for branching power runs
  • Components of the 4-Trac current tap infeed assembly
  • 4-Trac 15 Amp current tap infeed plugged into classroom wall outlet

4-Trac Modular Power Distribution System

Product Description

The 4-Trac system is a low-profile modular power solution for classroom tables, desks, and lecterns. It also uses keyed connectors so designers and installers can set or change under-table power runs without wiring errors, and delivers hidden, flexible power with two circuits and high-density receptacles—up to 13 duplex outlets per circuit—keeping cables out of sight while supporting group tables, instructor stations, or lecterns reliably.

Built from interlocking components like the 15 Amp tap infeed, flexible conduit infeeds, duplex receptacles, H-connectors, and adapters, it snaps together into the exact layout a space needs; this modularity speeds quoting and installation and, moreover, lets the power network adjust as room uses or technology change. Also, the snap-fit design reduces installation errors.

Finally, you can expand or reconfigure 4-Trac with minimal disruption, avoiding tear-outs. Additionally, it grows with changing needs so spaces stay ready without rewiring.

Features

Reconfigurable Power for Classroom Tables, Desks & Lecterns

The 4-Trac system gives flexible under-table power that can be changed as layouts evolve. Because it is modular, you can update or expand runs without major disruption.

Two-Circuit Capacity

  • Supports dual 20A circuits with 4 wires
  • High-density placement—up to 13 duplex receptacles per circuit
  • Specify Circuit 1 or 2 to match your design

Duplex Receptacle Modules

  • 15 Amp duplex receptacles for powering workstations and lecterns
  • Connect inline or via jumpers for layout flexibility

Power Infeed & Current Tap

  • Flexible conduit infeed rated for two 20A circuits; specify length
  • Corded current tap infeed for single 15A circuit with multiple mounting options
  • Professional connection to building power must be made by a qualified electrician per local codes

Branching & Extension

  • H-connector enables multi-directional distribution and ties up to four jumper runs
  • Receptacle-to-receptacle connector creates inline links between modules

Simple, Safe, Serviceable Design

  • Keyed connections prevent wiring mistakes and ease installation
  • Expandable—you can add or replace components without tearing out the system
  • UL recognized/listed for institutional safety compliance
  • Designed for active learning and collaborative environments

Computer Comforts designs and manufactures innovative furniture solutions for education environments.

Is the 4-Trac Modular Power Distribution System a perfect fit for your learning space?
